聊聊生命周期#

UI = fn(state)

state 负责计算出状态的变化
- reconciler 此阶段会执行 reconcile 算法 -> diff算法
fn 负责将状态变化渲染在视图中
- renderer 渲染器

调用流程: this.setState -> render阶段（调用reconcile算法计算出状态变化） -> commit阶段(渲染器阶段)

首屏渲染

调用ReactDOM.render
进入Render阶段
- 采用 深度优先遍历 创建 fiber 树并执行对应的生命周期函数
进入commit阶段（后序？）
- 首先将整颗fiber树的对应的DOM渲染到视图中
- 渲染完成后会从子节点开始执行对应的生命周期函数

更新渲染

调用 this.setState
进入Render阶段
- 采用深度优先遍历创建 fiber树（所以调用this.setState会创建一颗新的完整的fiber树，但是节点没有更新不会再次调用生命周期函数
- 遍历创建的过程中会调用reconcile算法标记变化（并调用节点的生命周期函数
进入commit 阶段（后序？）
执行变化对应的视图操作

`setState` 同步异步?#

Ref

两篇思路一致，后者还分析了 concurrent 模式

在一段代码中连续使用多个同步 setState(...) 操作，React 会将它们的更新update 先后依次加入到更新队列 updateQueue，在应用程序的 render 阶段处理更新队列时会将队列中的所有更新合并成一个，合并原则是相同属性的更新取最后一次的值。

如果有异步 setState(...) 操作，则先进行同步更新，异步更新则遵循EventLoop原理后续处理。

state = { text: '', count: 0 };
// 同步更新handleClick = () => {  this.setState({ count: this.state.count + 1 });  this.setState({ text: 'Click times ' + this.state.count });};// Click times 会比展示的会比 count 少1  --> Click times 4 : 5
// 异步更新handleClick = () => {  this.setState({ count: this.state.count + 1 });  setTimeout(() => {    this.setState({ text: 'Click times ' + this.state.count });  }, 500);};// 先count -> 1  再延迟500 Click times 1

在 legacy 模式下，正常会触发 batchedUpdate 呈现异步的感觉
- ReactDOM.render(<App />, rootNode)
- 多个 setState() 会触发React的性能优化只计算最后一次
- 不在React上下文如 setTimeout 则表现同步
  - 多个 setState() 会按顺序依次执行
concurrent 模式都呈现异步
- ReactDOM.createRoot(rootNode).render(<App />)
- concurrent 模式下在 setTimeout 里面的多个 setState 也会只执行最后一个
- 说明在 concurrent 模式下，即使脱离了 React 的生命周期，setState 依旧能够合并更新。主要原因是 concurrent 模式下，真正的更新操作被移到了下一个事件队列中，类似于 Vue 的 nextTick。
setState 是一次同步操作，只是每次操作之后并没有立即执行，而是将 setState 进行了缓存，mount 流程结束或事件操作结束，才会拿出所有的 state 进行一次计算。如果 setState 脱离了 React 的生命周期或者 React 提供的事件流，setState 之后就能立即拿到结果。
this.setState()是否异步，看 isBatchingUpdates 的状态，为 true 就是异步，为 false 就是同步

React 理念#

React 是用 JavaScript 构建快速响应的大型 Web 应用程序的首选方式

快速响应

CPU的瓶颈#

当遇到大计算量的操作或者设备性能不足使页面掉帧，导致卡顿。

当JS执行时间过长，超出了16.6ms，这次刷新就没有时间执行样式布局和样式绘制了。

在浏览器每一帧的时间中，预留一些时间给JS线程，React利用这部分时间更新组件。

当预留的时间不够用时，React将线程控制权交还给浏览器使其有时间渲染UI，React则等待下一帧时间到来继续被中断的工作。（一直吃不到则有timeout）

这种将长任务分拆到每一帧中，像蚂蚁搬家一样一次执行一小段任务的操作，被称为时间切片（time slice）

解决CPU瓶颈的关键是实现时间切片，而时间切片的关键是：将同步的更新变为可中断的异步更新。

IO的瓶颈#

发送网络请求后，由于需要等待数据返回才能进一步操作导致不能快速响应。

网络延迟是前端开发者无法解决的。如何在网络延迟客观存在的情况下，减少用户对网络延迟的感知？

React给出的答案是将人机交互研究的结果整合到真实的 UI 中

React实现了Suspense功能及配套的hook——useDeferredValue

React为了践行“构建快速响应的大型 Web 应用程序”理念做出的努力。

其中的关键是解决CPU的瓶颈与IO的瓶颈。而落实到实现上，则需要将同步的更新变为可中断的异步更新。

React15架构#

可以分为两层：

Reconciler（协调器）—— 负责找出变化的组件
Renderer（渲染器）—— 负责将变化的组件渲染到页面上

`Reconciler`#

每当有更新发生时，Reconciler会做如下工作：

调用函数组件、或class组件的render方法，将返回的JSX转化为虚拟DOM
将虚拟DOM和上次更新时的虚拟DOM对比
通过对比找出本次更新中变化的虚拟DOM
通知Renderer将变化的虚拟DOM渲染到页面上

`Renderer`#

由于React支持跨平台，所以不同平台有不同的Renderer。我们前端最熟悉的是负责在浏览器环境渲染的Renderer —— ReactDOM

在每次更新发生时，Renderer接到Reconciler通知，将变化的组件渲染在当前宿主环境。

缺点#

在Reconciler中，mount的组件会调用mountComponent，update的组件会调用updateComponent。这两个方法都会递归更新子组件。
由于递归执行，所以更新一旦开始，中途就无法中断。当层级很深时，递归更新时间超过了16ms，用户交互就会卡顿。
Reconciler和Renderer是交替工作的，当第一个li在页面上已经变化后，第二个li再进入Reconciler。整个过程是同步不可中断的

React16架构#

可以分为三层：

Scheduler（调度器）—— 调度任务的优先级，高优任务优先进入Reconciler
Reconciler（协调器）—— 负责找出变化的组件
Renderer（渲染器）—— 负责将变化的组件渲染到页面上
其中 Scheduler Reconciler 随时可能由于以下原因被中断
- 有其他更高优任务需要先更新
- 当前帧没有剩余时间

相较于15

新增Scheduler
采用新的Reconciler 且Reconciler内部采用了Fiber的架构
Scheduler和 Reconciler 都是平台无关的

`Scheduler`#

既然我们以浏览器是否有剩余时间作为任务中断的标准，那么我们需要一种机制，当浏览器有剩余时间时通知我们。

React实现了功能更完备的requestIdleCallbackpolyfill，这就是Scheduler。除了在空闲时触发回调的功能外，Scheduler还提供了多种调度优先级供任务设置。

放弃使用requestIdleCallback原因

浏览器兼容性
触发频率不稳定，受很多因素影响。比如当我们的浏览器切换tab后，之前tab注册的requestIdleCallback触发的频率会变得很低

`Reconciler`#

协调器（Reconciler）重构的一大目的是：将老的同步更新的架构变为异步可中断更新

更新工作从递归变成了可以中断的循环过程。每次循环都会调用shouldYield判断当前是否有剩余时间。

function workLoopConcurrent() {  // Perform work until Scheduler asks us to yield  while (workInProgress !== null && !shouldYield()) {    workInProgress = performUnitOfWork(workInProgress);  }}

那么React16是如何解决中断更新时DOM渲染不完全的问题呢？

在React16中，Reconciler与Renderer不再是交替工作。当Scheduler将任务交给Reconciler后，Reconciler会为变化的虚拟DOM打上代表增/删/更新的标记，类似这样：

export const Placement = /*             */ 0b0000000000010;export const Update = /*                */ 0b0000000000100;export const PlacementAndUpdate = /*    */ 0b0000000000110;export const Deletion = /*              */ 0b0000000001000;

整个Scheduler与Reconciler的工作都在内存中进行。只有当所有组件都完成Reconciler的工作，才会统一交给Renderer。

`Renderer`#

Renderer根据Reconciler为虚拟DOM打的标记，同步执行对应的DOM操作。

`render`和`commit`阶段#

Reconciler工作的阶段被称为render阶段。因为在该阶段会调用组件的render方法。
Renderer工作的阶段被称为commit阶段。就像你完成一个需求的编码后执行git commit提交代码。commit阶段会把render阶段提交的信息渲染在页面上。
render与commit阶段统称为work，即React在工作中。相对应的，如果任务正在Scheduler内调度，就不属于work。

Fiber架构#

React Fiber可以理解为：

React内部实现的一套状态更新机制。支持任务不同优先级，可中断与恢复，并且恢复后可以复用之前的中间状态。

其中每个任务更新单元为React Element对应的Fiber节点
在新的架构中，虚拟DOM在React中有个正式的称呼——Fiber

弃用`generate`原因#

generate是可以实现中断的但是却被弃用原因如下

Generator是传染性的，使用了Generator则上下文的其他函数也需要作出改变。这样心智负担比较重。
Generator执行的中间状态是上下文关联的。
当考虑高优先级任务插队时需要全局变量保存之前执行的中间状态会引入新的复杂度

`Fiber`的含义#

作为架构来说
- React15的Reconciler采用递归的方式执行，被称为stack Reconciler。
- React16的Reconciler基于Fiber节点实现，被称为Fiber Reconciler。
作为静态的数据结构来说
- 每个Fiber节点对应一个React element，保存了该组件的类型（函数组件/类组件/原生组件...）、对应的DOM节点等信息。
作为动态的工作单元来说
- 每个Fiber节点保存了本次更新中该组件改变的状态、要执行的工作（需要被删除/被插入页面中/被更新...）。

架构#

每个Fiber节点有个对应的React element，多个Fiber节点是如何连接形成树呢？靠如下三个属性：

// 指向父级Fiber节点this.return = null;// 指向子Fiber节点this.child = null;// 指向右边第一个兄弟Fiber节点this.sibling = null;

静态的数据结构#

作为一种静态的数据结构，保存了组件相关的信息

// Fiber对应组件的类型 Function/Class/Host...this.tag = tag;// key属性this.key = key;// 大部分情况同type，某些情况不同，比如FunctionComponent使用React.memo包裹this.elementType = null;// 对于 FunctionComponent，指函数本身，对于ClassComponent，指class，对于HostComponent，指DOM节点tagNamethis.type = null;// Fiber对应的真实DOM节点this.stateNode = null;

动态的工作单元#

作为动态的工作单元，Fiber中如下参数保存了本次更新相关的信息

// 保存本次更新造成的状态改变相关信息this.pendingProps = pendingProps;this.memoizedProps = null;this.updateQueue = null;this.memoizedState = null;this.dependencies = null;
this.mode = mode;
// 保存本次更新会造成的DOM操作this.effectTag = NoEffect;this.nextEffect = null;
this.firstEffect = null;this.lastEffect = null;

`JSX Fiber`#

createElement => jsx -> React element

在组件mount时，Reconciler根据JSX描述的组件内容(react element)生成组件对应的Fiber节点。

在update时，Reconciler将JSX与Fiber节点保存的数据对比，生成组件对应的Fiber节点，并根据对比结果为Fiber节点打上标记

`render`阶段#

同步 - workLoopSync -> performUnitOfWork异步 - workLoopConcurrent -> performUnitOfWork

// performSyncWorkOnRoot会调用该方法function workLoopSync() {  while (workInProgress !== null) {    performUnitOfWork(workInProgress);  }}
// performConcurrentWorkOnRoot会调用该方法function workLoopConcurrent() {  while (workInProgress !== null && !shouldYield()) {    performUnitOfWork(workInProgress);  }}

shouldYield 如果当前浏览器帧没有剩余时间，shouldYield会中止循环，直到浏览器有空闲时间后再继续遍历。
performUnitOfWork 方法会创建下一个Fiber节点并赋值给workInProgress，并将workInProgress与已创建的Fiber节点连接起来构成Fiber树。

Fiber Reconciler是从Stack Reconciler重构而来，通过遍历的方式实现可中断的递归，所以performUnitOfWork的工作可以分为两部分：“递”和“归”。

递 `beginWork`#

首先从rootFiber开始向下深度优先遍历。为遍历到的每个 Fiber节点 调用 beginWork方法

该方法会根据传入的Fiber节点创建子Fiber节点，并将这两个 Fiber节点 连接起来。

当遍历到叶子节点（即没有子组件的组件）时就会进入“归”阶段。

归 `completeWork`#

在“归”阶段会调用 completeWork 处理Fiber节点。

当某个Fiber节点执行完completeWork，如果其存在兄弟Fiber节点（即fiber.sibling !== null），会进入其兄弟Fiber的“递”阶段。

如果不存在兄弟Fiber，会进入父级Fiber的“归”阶段。

“递”和“归”阶段会交错执行直到“归”到rootFiber。至此，render阶段的工作就结束了。

performUnitOfWork递归版本

`performUnitOfWork`#

`beginWork`#

beginWork的工作是传入当前Fiber节点，创建子Fiber节点

得益于双缓存树的机制，在组件mount时，由于是首次渲染，是不存在当前组件对应的Fiber节点在上一次更新时的Fiber节点，即mount时current === null。所以可以通过current === null ?来区分组件是处于mount还是update

mount时：除fiberRootNode以外，current === null。会根据fiber.tag不同，创建不同类型的子Fiber节点
update时：如果current存在，在满足一定条件时可以复用current节点，这样就能克隆current.child作为workInProgress.child，而不需要新建workInProgress.child。

font-size: 0.875em;font-family: Monaco, Consolas, "Andale Mono", "DejaVu Sans Mono", monospace;git add--bg-color: #363B40;

update 时 workInProgress 会复用 current 节点

`commit`阶段#

commit阶段的主要工作（即Renderer的工作流程）分为三部分：

before mutation阶段（执行DOM操作前）
mutation阶段（执行DOM操作）
layout阶段（执行DOM操作后）

concurrent模式相较我们当前使用的legacy模式最主要的区别是将同步的更新机制重构为异步可中断的更新。

React内部运行机制

ReactDOM.render 函数的返回值是当前应用程序根组件的实例

当组件内部有this.setState( ... )操作时，React 首先根据this对象找到对应的 Fiber 结点，然后将更新加入到当前 Fiber 结点的更新队列。

组件的设计思想数据驱动更新

当一个组件内部的数据发生变化时，组件中返回的 UI 也随之变化并更新到屏幕

这段话有点意思

React 使用 state 为组件维护了自己的内部状态，使用 props 为组件维护了自己的外部状态。 state 和 props 的变化意味着组件的 UI 需要更新事实上，React 组件中的 UI 就是它的「元素」，React 元素是一种普通的 JavaScript 对象。因此，state和props的变化只需要更新 JavaScript 对象即可。由于更新 JavaScript 对象要远比直接 DOM 树更加轻巧便利也使得 React 组件的更新渲染性能达到了很高的标准。

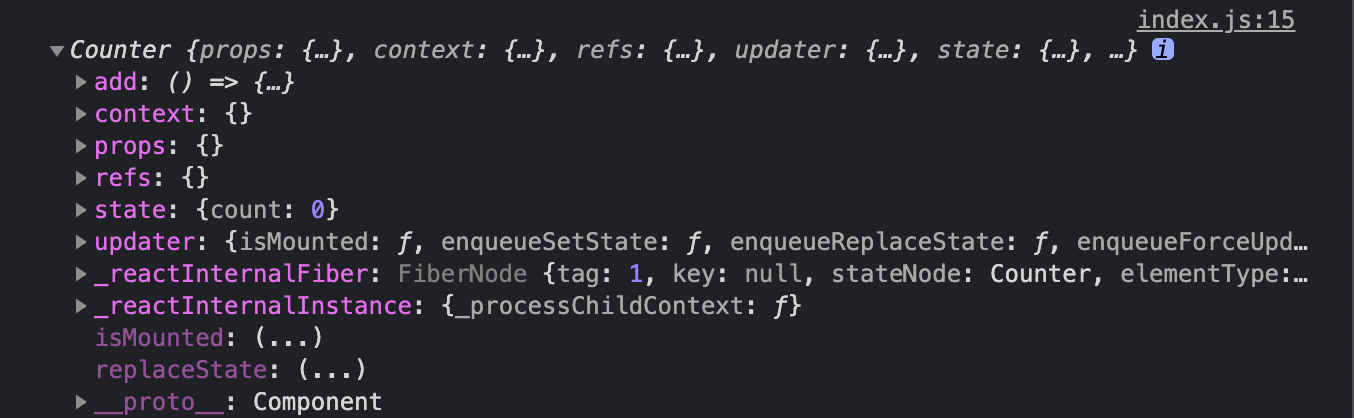

// 验证一下 再看下原文
Counter.__proto__ === Component
Counter.prototype.__proto__ === Component.prototype
Counter组件实例的__proto__ 指向了Counter构造函数的原型对象

组件实例在react运行时会返回组件元素与状态 state    var nextChildren = instance.render()
调用生命周期函数 instance.componentDidMount()
触发更新 执行setState操作应用程序在首次渲染时会为组件实例绑定对应 的更新器。当组件接收到事件触发更新的时候 会通过组件实例上的更新器执行更新流程instance.updater = classComponentUpdater
组件实例是 React 应用程序运行时组件被实例化后的状态，每一个组件实例都拥有自身的属性和继承于 的属性。应用程序首次渲染时通过调用组件实例的   返 回 React 元素，用于构建页面 (UI)。当应用程序被(事件)触发更新时，组件实例调用自身的更新器(updater)进入更新渲染流程。此外，在应用程序渲染的 render 或者 commit 阶段(前后)中会通过组件实例调用对应的生命周期函数。 组件实例调用自身的函数返回 React 元素

Fiber 架构 主要目标是解决应用程序的更新任务与(外部)其他任务(如动 画渲染)在 CPU 资源分配方面的问题

从概念上将 React Fiber 是一种程序架构，但是在 React 应用程序运行过程中它的实际体现是一个 JavaScript对象，该对象主要是由两个构造函数的实例层层引用组成。这两个构造函数分别是 FiberRootNode和FiberNode。
在后面文章中将统一称 FiberRootNode 的实例为 fiberRoot 对象， FiberNode 的实例为 Fiber 对象或者 Fiber 结 点


React元素包含的属性 主要是对应用程序UI部分都描述React元素的数据结构并不能完成 创建更新 以及 将更新渲染到屏幕 等渲染工作
所以这些工作需要 由Fiber结点（具有更加丰富的数据结构）来完成





React v15 版本应用程序调用 setState() 和 render() 方法进行更新和渲染时主要包含两个阶段:调度阶段(reconciler):React Fiber 之前的 reconciler(被称为 Stack reconciler)是自顶向下的递归算 法，遍历新数据生成新的Virtual DOM。通过 diff 算法，找出需要更新的元素，放到更新队列中去。 渲染阶段(render): 根据所在的渲染环境，遍历更新队列，调用渲染宿主环境的 API, 将对应元素更新渲 染。在浏览器中，就是更新对应的 DOM 元素，除浏览器外，渲染环境还可以是 Native、WebGL 等等。React Fiber 之前的调度策略 Stack Reconciler，这个策略像函数调用栈一样，递归遍历所有的 Virtual DOM 结点进 行 diff，一旦开始无法被中断，要等整棵 Virtual DOM 树计算完成之后，才将任务出栈释放主线程。而浏览器中的 渲染引擎是单线程的，除了网络操作，几乎所有的操作都在这个单线程中执行，此时如果主线程上的用户交互、动 画等周期性任务无法立即得到处理，就会影响体验。


161. 将任务按照单个 Fiber 结点为单位，拆分成细小的单元。2. 重写render和commit两阶段的逻辑，render阶段的任务每次在执行前先请求任务体系获得执行权。 3. 对任务建立优先级体系，高优先级任务优于低优先级工作执行。


React 应用程序首次渲染时在 prerender 阶段会初始化 「current 树」(本质上也是对象哦)。最开始的 current 树只有一个根结点— HostRoot类型的 Fiber 结点。在后面的 render 阶段会根据此时的 current 树创建 「workInProgress 树」(同样是对象哦，每个结点都是FiberNode 的实例)。在 workInProgress 树上面进行一 系列运算(计算更新等)，最后将副作用列表(Effect List)传入到 commit 阶段。当 commit 阶段运行完成后将当 前的 current 树替换为 workInProgress 树，至此一个更新流程就完成了。这个过程简化描述就是:
1. 在 render 阶段 React 依赖 current 树通过工作循环(workLoop)构建 workInProgress 树; 2. 在 workInProgress 树进行一些更新计算，得到副作用列表(Effect List);3. 在 commit 阶段将副作用列表渲染到页面后，将 current 树替换为 workInProgress 树(执行 current = workInprogress)。




Fiber 树


FiberRootNode 构造函数只有一个实例就是 fiberRoot 对象。而每个 Fiber 结点都是 FiberNode 构造函数的实例， 它们通过 return ， child 和 sibling 三个属性连接起来，形成了一个巨大链表。React 对每个结点的更新计算都是在这 个链表上完成的。React 在对 Fiber 结点标记更新标识的时候的做法就是为结点的 effectTag 属性赋不同的值，这个 赋值逻辑用了较多的位运算，下一节将会详细 Fiber 结点中的 effectTag 与位运算。

JS 和渲染引擎是一个互斥关系

Fiber 和 fiber 不是同一个概念。前者代表新的调和器，后者代表 fiber node，也可以认为是改进后的虚拟 DOM。

浏览器的一帧#

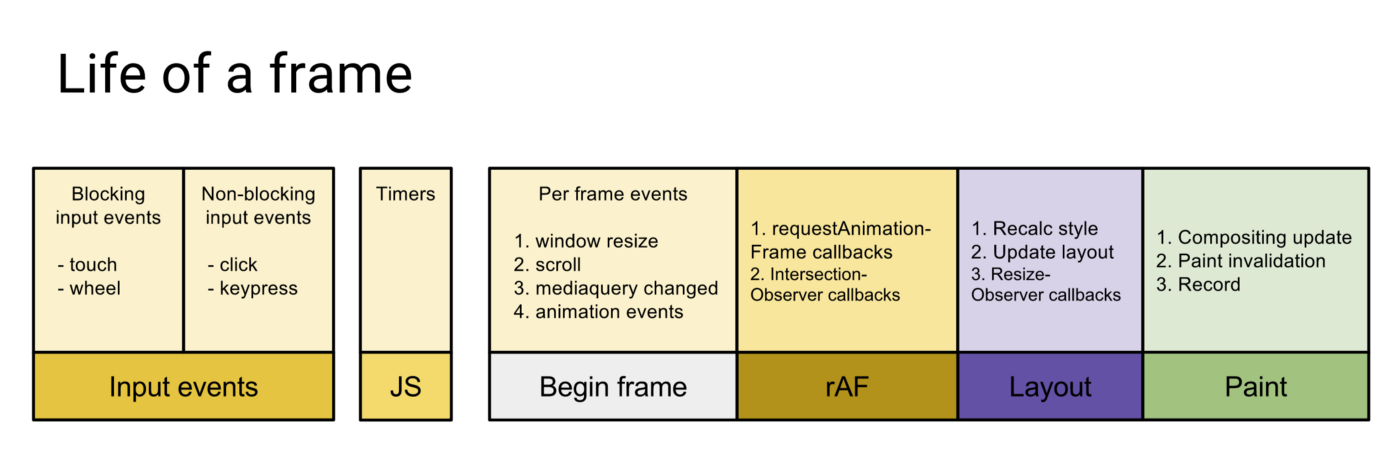

life of a frame

主流浏览器刷新频率为60Hz，即每（1000ms / 60Hz）16.6ms浏览器刷新一次。

浏览器每一帧都需要完成这些任务：

处理用户交互
JS 解析执行
一帧的开始，处理视窗变化、页面滚动等
requestAnimationFrame(rAF)
布局 layout
绘制 paint

一帧的空闲时间会执行 RequestIdelCallback

如果这六个步骤中，任意一个步骤所占用的时间过长，总时间超过 16ms 了之后，用户就会感到卡顿。

把渲染更新过程拆分成多个子任务，每次只做一小部分，做完看是否还有剩余时间，如果有继续下一个任务；如果没有，挂起当前任务，将时间控制权交给主线程，等主线程不忙的时候在继续执行。这种策略叫做 Cooperative Scheduling（合作式调度），操作系统常用任务调度策略之一。

合作式调度主要就是用来分配任务的，当有更新任务来的时候，不会马上去做 Diff 操作，而是先把当前的更新送入一个 Update Queue 中，然后交给 Scheduler 去处理，Scheduler 会根据当前主线程的使用情况去处理这次 Update。为了实现这种特性，使用了requestIdelCallbackAPI。对于不支持这个API 的浏览器，React 会加上 pollyfill。

调度#

`scheduleWork`#

// 主要的事情就是找到我们要处理的root,设置刚才获取到的执行优先级，然后调用 requestWorkfunction scheduleWork(fiber, expirationTime) {  var root = scheduleWorkToRoot(fiber, expirationTime);  if (root === null) {    return;  }    // 存在上一个任务 且 上一个任务未执行完，但执行权交给了浏览器 且 发现当前更新的优先级高于上一个任务 调用resetStack 重置 stack  // resetStack会从nextUnitOfWork开始一步一步往上恢复，前一个任务执行的那一半白做了  if (!isWorking && nextRenderExpirationTime !== NoWork && expirationTime > nextRenderExpirationTime) {    // This is an interruption. (Used for performance tracking.)    interruptedBy = fiber;    resetStack();  }  markPendingPriorityLevel(root, expirationTime);  // If we're in the render phase, we don't need to schedule this root for an update, because we'll do it before we exit...unless this is a different root than the one we're rendering.  if (!isWorking || isCommitting$1 || nextRoot !== root) {    var rootExpirationTime = root.expirationTime;    requestWork(root, rootExpirationTime);  }  // 告知你的代码触发无限循环了  if (nestedUpdateCount > NESTED_UPDATE_LIMIT) {    // Reset this back to zero so subsequent updates don't throw.    nestedUpdateCount = 0;    invariant(false, 'Maximum update depth exceeded. This can happen when a component repeatedly calls setState inside componentWillUpdate or componentDidUpdate. React limits the number of nested updates to prevent infinite loops.');  }}

`scheduleWorkToRoot`#

function scheduleWorkToRoot(fiber, expirationTime) {
  // Update the source fiber's expiration time  if (fiber.expirationTime < expirationTime) {    fiber.expirationTime = expirationTime;  }  var alternate = fiber.alternate;  if (alternate !== null && alternate.expirationTime < expirationTime) {    alternate.expirationTime = expirationTime;  }  // Walk the parent path to the root and update the child expiration time.  var node = fiber.return;  var root = null;  if (node === null && fiber.tag === HostRoot) {    root = fiber.stateNode;  } else {    while (node !== null) {      alternate = node.alternate;      if (node.childExpirationTime < expirationTime) {        node.childExpirationTime = expirationTime;        if (alternate !== null && alternate.childExpirationTime < expirationTime) {          alternate.childExpirationTime = expirationTime;        }      } else if (alternate !== null && alternate.childExpirationTime < expirationTime) {        alternate.childExpirationTime = expirationTime;      }      if (node.return === null && node.tag === HostRoot) {        root = node.stateNode;        break;      }      node = node.return;    }  }  return root;}

`requestWork`#

function requestWork(root, expirationTime) {  // 将Root加入到Schedule，更新root.expirationTime  addRootToSchedule(root, expirationTime);  if (isRendering) {    // Prevent reentrancy. Remaining work will be scheduled at the end of the currently rendering batch.    return;  }
  if (isBatchingUpdates) {    // Flush work at the end of the batch.    if (isUnbatchingUpdates) {      // ...unless we're inside unbatchedUpdates, in which case we should flush it now.      nextFlushedRoot = root;      nextFlushedExpirationTime = Sync;      performWorkOnRoot(root, Sync, false);    }    return;  }
  // TODO: Get rid of Sync and use current time?  if (expirationTime === Sync) {    performSyncWork();  } else {    // 函数核心是实现了 requestIdleCallback 的 polyfill 版本    scheduleCallbackWithExpirationTime(root, expirationTime);  }}

`addRootToSchedule`#

function addRootToSchedule(root, expirationTime) {  // Add the root to the schedule.  // Check if this root is already part of the schedule.  // 判断 root 是否调度过  if (root.nextScheduledRoot === null) {    // This root is not already scheduled. Add it.    root.expirationTime = expirationTime;    if (lastScheduledRoot === null) {      firstScheduledRoot = lastScheduledRoot = root;      root.nextScheduledRoot = root;    } else {      lastScheduledRoot.nextScheduledRoot = root;      lastScheduledRoot = root;      lastScheduledRoot.nextScheduledRoot = firstScheduledRoot;    }  } else {    // This root is already scheduled, but its priority may have increased.    // root 已经调度过，判断是否需要更新优先级    var remainingExpirationTime = root.expirationTime;    if (expirationTime > remainingExpirationTime) {      // Update the priority.      root.expirationTime = expirationTime;    }  }

`performSyncWork`#

function performSyncWork() {  performWork(Sync, false);}

`performWork`#

function performWork(minExpirationTime, isYieldy) {  // Keep working on roots until there's no more work, or until there's a higher  // priority event.  findHighestPriorityRoot();
  if (isYieldy) {    recomputeCurrentRendererTime();    currentSchedulerTime = currentRendererTime;
    if (enableUserTimingAPI) {      var didExpire = nextFlushedExpirationTime > currentRendererTime;      var timeout = expirationTimeToMs(nextFlushedExpirationTime);      stopRequestCallbackTimer(didExpire, timeout);    }
    while (nextFlushedRoot !== null && nextFlushedExpirationTime !== NoWork && minExpirationTime <= nextFlushedExpirationTime && !(didYield && currentRendererTime > nextFlushedExpirationTime)) {      performWorkOnRoot(nextFlushedRoot, nextFlushedExpirationTime, currentRendererTime > nextFlushedExpirationTime);      findHighestPriorityRoot();      recomputeCurrentRendererTime();      currentSchedulerTime = currentRendererTime;    }  } else {    while (nextFlushedRoot !== null && nextFlushedExpirationTime !== NoWork && minExpirationTime <= nextFlushedExpirationTime) {      performWorkOnRoot(nextFlushedRoot, nextFlushedExpirationTime, false);      findHighestPriorityRoot();    }  }
  // We're done flushing work. Either we ran out of time in this callback,  // or there's no more work left with sufficient priority.
  // If we're inside a callback, set this to false since we just completed it.  if (isYieldy) {    callbackExpirationTime = NoWork;    callbackID = null;  }  // If there's work left over, schedule a new callback.  if (nextFlushedExpirationTime !== NoWork) {    scheduleCallbackWithExpirationTime(nextFlushedRoot, nextFlushedExpirationTime);  }
  // Clean-up.  finishRendering();}

`scheduleCallbackWithExpirationTime`#

// requestIdleCallback 的 polyfill 版本function scheduleCallbackWithExpirationTime(root, expirationTime) {  if (callbackExpirationTime !== NoWork) {    // A callback is already scheduled. Check its expiration time (timeout).    if (expirationTime < callbackExpirationTime) {      // Existing callback has sufficient timeout. Exit.      return;    } else {      if (callbackID !== null) {        // Existing callback has insufficient timeout. Cancel and schedule a new one.        unstable_cancelCallback(callbackID);      }    }    // The request callback timer is already running. Don't start a new one.  } else {    startRequestCallbackTimer();  }
  callbackExpirationTime = expirationTime;  var currentMs = unstable_now() - originalStartTimeMs;  var expirationTimeMs = expirationTimeToMs(expirationTime);  var timeout = expirationTimeMs - currentMs;  callbackID = unstable_scheduleCallback(performAsyncWork, { timeout: timeout });}

`unstable_scheduleCallback`#

function unstable_scheduleCallback(callback, deprecated_options) {  var startTime = currentEventStartTime !== -1 ? currentEventStartTime : getCurrentTime();
  var expirationTime;  if (typeof deprecated_options === 'object' && deprecated_options !== null && typeof deprecated_options.timeout === 'number') {    // FIXME: Remove this branch once we lift expiration times out of React.    expirationTime = startTime + deprecated_options.timeout;  } else {    switch (currentPriorityLevel) {      case ImmediatePriority:        expirationTime = startTime + IMMEDIATE_PRIORITY_TIMEOUT;        break;      case UserBlockingPriority:        expirationTime = startTime + USER_BLOCKING_PRIORITY;        break;      case IdlePriority:        expirationTime = startTime + IDLE_PRIORITY;        break;      case LowPriority:        expirationTime = startTime + LOW_PRIORITY_TIMEOUT;        break;      case NormalPriority:      default:        expirationTime = startTime + NORMAL_PRIORITY_TIMEOUT;    }  }
  var newNode = {    callback: callback,    priorityLevel: currentPriorityLevel,    expirationTime: expirationTime,    next: null,    previous: null  };
  // Insert the new callback into the list, ordered first by expiration, then  // by insertion. So the new callback is inserted any other callback with  // equal expiration.  if (firstCallbackNode === null) {    // This is the first callback in the list.    firstCallbackNode = newNode.next = newNode.previous = newNode;    ensureHostCallbackIsScheduled();  } else {    var next = null;    var node = firstCallbackNode;    do {      if (node.expirationTime > expirationTime) {        // The new callback expires before this one.        next = node;        break;      }      node = node.next;    } while (node !== firstCallbackNode);
    if (next === null) {      // No callback with a later expiration was found, which means the new      // callback has the latest expiration in the list.      next = firstCallbackNode;    } else if (next === firstCallbackNode) {      // The new callback has the earliest expiration in the entire list.      firstCallbackNode = newNode;      ensureHostCallbackIsScheduled();    }
    var previous = next.previous;    previous.next = next.previous = newNode;    newNode.next = next;    newNode.previous = previous;  }
  return newNode;}

`ensureHostCallbackIsScheduled`#

function ensureHostCallbackIsScheduled() {  if (isExecutingCallback) {    // Don't schedule work yet; wait until the next time we yield. // 调度正在执行 返回 也就是不能打断已经在执行的    return;  }  // Schedule the host callback using the earliest expiration in the list. 让优先级最高的 进行调度 如果存在已经在调度的 直接取消  var expirationTime = firstCallbackNode.expirationTime;  if (!isHostCallbackScheduled) {    isHostCallbackScheduled = true;  } else {    // Cancel the existing host callback.    cancelHostCallback();  }  requestHostCallback(flushWork, expirationTime);}

`requestHostCallback`#

requestHostCallback = function (callback, absoluteTimeout) {  scheduledHostCallback = callback;  timeoutTime = absoluteTimeout;  if (isFlushingHostCallback || absoluteTimeout < 0) {    // Don't wait for the next frame. Continue working ASAP, in a new event.    port.postMessage(undefined);  } else if (!isAnimationFrameScheduled) {    // If rAF didn't already schedule one, we need to schedule a frame.    // TODO: If this rAF doesn't materialize because the browser throttles, we    // might want to still have setTimeout trigger rIC as a backup to ensure    // that we keep performing work.    isAnimationFrameScheduled = true;    requestAnimationFrameWithTimeout(animationTick);  }};

`requestAnimationFrameWithTimeout`#

var ANIMATION_FRAME_TIMEOUT = 100;var rAFID;var rAFTimeoutID;var requestAnimationFrameWithTimeout = function (callback) {  // schedule rAF and also a setTimeout  // 这里的 local 开头的函数指的是 requestAnimationFrame 及 setTimeout  // requestAnimationFrame 只有页面在前台时才会执行回调  // 如果页面在后台时就不会执行回调，这时候会通过 setTimeout 来保证执行 callback  // 两个回调中都可以互相 cancel 定时器  // callback 指的是 animationTick  rAFID = localRequestAnimationFrame(function (timestamp) {    // cancel the setTimeout    localClearTimeout(rAFTimeoutID);    callback(timestamp);  });  rAFTimeoutID = localSetTimeout(function () {    // cancel the requestAnimationFrame    localCancelAnimationFrame(rAFID);    callback(getCurrentTime());  }, ANIMATION_FRAME_TIMEOUT);};

`animationTick`#

var animationTick = function (rafTime) {    if (scheduledHostCallback !== null) {      // scheduledHostCallback 不为空的话就继续递归      // 但是注意这里的递归并不是同步的，下一帧的时候才会再执行 animationTick      requestAnimationFrameWithTimeout(animationTick);    } else {      // No pending work. Exit.      isAnimationFrameScheduled = false;      return;    }            // frameDeadline 初始值为0，计算当前帧的截止时间        // activeFrameTime 初始值为33 ，一帧的渲染时间33ms    var nextFrameTime = rafTime - frameDeadline + activeFrameTime;    if (nextFrameTime < activeFrameTime && previousFrameTime < activeFrameTime) {      if (nextFrameTime < 8) {        // Defensive coding. We don't support higher frame rates than 120hz.        // If the calculated frame time gets lower than 8, it is probably a bug.        nextFrameTime = 8;      }      // If one frame goes long, then the next one can be short to catch up.      // If two frames are short in a row, then that's an indication that we      // actually have a higher frame rate than what we're currently optimizing.      // We adjust our heuristic dynamically accordingly. For example, if we're      // running on 120hz display or 90hz VR display.      // Take the max of the two in case one of them was an anomaly due to      // missed frame deadlines.      activeFrameTime = nextFrameTime < previousFrameTime ? previousFrameTime : nextFrameTime;    } else {      previousFrameTime = nextFrameTime;    }    frameDeadline = rafTime + activeFrameTime;    if (!isMessageEventScheduled) {      isMessageEventScheduled = true;      port.postMessage(undefined);    }  };

`MessageChannel`#

// We use the postMessage trick to defer idle work until after the repaint.  var channel = new MessageChannel();  var port = channel.port2;  channel.port1.onmessage = function (event) {    isMessageEventScheduled = false;
    var prevScheduledCallback = scheduledHostCallback;    var prevTimeoutTime = timeoutTime;    scheduledHostCallback = null;    timeoutTime = -1;
    var currentTime = getCurrentTime();
    var didTimeout = false;    if (frameDeadline - currentTime <= 0) {      // There's no time left in this idle period. Check if the callback has      // a timeout and whether it's been exceeded.      if (prevTimeoutTime !== -1 && prevTimeoutTime <= currentTime) {        // Exceeded the timeout. Invoke the callback even though there's no        // time left.        didTimeout = true;      } else {        // No timeout.        if (!isAnimationFrameScheduled) {          // Schedule another animation callback so we retry later.          isAnimationFrameScheduled = true;          requestAnimationFrameWithTimeout(animationTick);        }        // Exit without invoking the callback.        scheduledHostCallback = prevScheduledCallback;        timeoutTime = prevTimeoutTime;        return;      }    }
    if (prevScheduledCallback !== null) {      isFlushingHostCallback = true;      try {        prevScheduledCallback(didTimeout);      } finally {        isFlushingHostCallback = false;      }    }  };

`flushWork`#

function flushWork(didTimeout) {  // Exit right away if we're currently paused
  if (enableSchedulerDebugging && isSchedulerPaused) {    return;  }
  isExecutingCallback = true;  var previousDidTimeout = currentDidTimeout;  currentDidTimeout = didTimeout;  try {    if (didTimeout) {      // Flush all the expired callbacks without yielding.      while (firstCallbackNode !== null && !(enableSchedulerDebugging && isSchedulerPaused)) {        // TODO Wrap in feature flag        // Read the current time. Flush all the callbacks that expire at or        // earlier than that time. Then read the current time again and repeat.        // This optimizes for as few performance.now calls as possible.        var currentTime = getCurrentTime();        if (firstCallbackNode.expirationTime <= currentTime) {          do {            flushFirstCallback();          } while (firstCallbackNode !== null && firstCallbackNode.expirationTime <= currentTime && !(enableSchedulerDebugging && isSchedulerPaused));          continue;        }        break;      }    } else {      // Keep flushing callbacks until we run out of time in the frame.      if (firstCallbackNode !== null) {        do {          if (enableSchedulerDebugging && isSchedulerPaused) {            break;          }          flushFirstCallback();        } while (firstCallbackNode !== null && !shouldYieldToHost());      }    }  } finally {    isExecutingCallback = false;    currentDidTimeout = previousDidTimeout;    if (firstCallbackNode !== null) {      // There's still work remaining. Request another callback.      ensureHostCallbackIsScheduled();    } else {      isHostCallbackScheduled = false;    }    // Before exiting, flush all the immediate work that was scheduled.    flushImmediateWork();  }}

`flushFirstCallback`#

`performAsyncWork`#

function performAsyncWork() {  try {    if (!shouldYieldToRenderer()) {      // The callback timed out. That means at least one update has expired.      // Iterate through the root schedule. If they contain expired work, set      // the next render expiration time to the current time. This has the effect      // of flushing all expired work in a single batch, instead of flushing each      // level one at a time.      if (firstScheduledRoot !== null) {        recomputeCurrentRendererTime();        var root = firstScheduledRoot;        do {          didExpireAtExpirationTime(root, currentRendererTime);          // The root schedule is circular, so this is never null.          root = root.nextScheduledRoot;        } while (root !== firstScheduledRoot);      }    }    performWork(NoWork, true);  } finally {    didYield = false;  }}

`performWork`#

`performWorkOnRoot`#

function performWorkOnRoot(root, expirationTime, isYieldy) {
  isRendering = true;
  // Check if this is async work or sync/expired work.  if (!isYieldy) {    // Flush work without yielding.    // TODO: Non-yieldy work does not necessarily imply expired work. A renderer    // may want to perform some work without yielding, but also without    // requiring the root to complete (by triggering placeholders).
    var finishedWork = root.finishedWork;    if (finishedWork !== null) {      // This root is already complete. We can commit it.      completeRoot(root, finishedWork, expirationTime);    } else {      root.finishedWork = null;      // If this root previously suspended, clear its existing timeout, since      // we're about to try rendering again.      var timeoutHandle = root.timeoutHandle;      if (timeoutHandle !== noTimeout) {        root.timeoutHandle = noTimeout;        // $FlowFixMe Complains noTimeout is not a TimeoutID, despite the check above        cancelTimeout(timeoutHandle);      }      renderRoot(root, isYieldy);      finishedWork = root.finishedWork;      if (finishedWork !== null) {        // We've completed the root. Commit it.        completeRoot(root, finishedWork, expirationTime);      }    }  } else {    // Flush async work.    var _finishedWork = root.finishedWork;    if (_finishedWork !== null) {      // This root is already complete. We can commit it.      completeRoot(root, _finishedWork, expirationTime);    } else {      root.finishedWork = null;      // If this root previously suspended, clear its existing timeout, since      // we're about to try rendering again.      var _timeoutHandle = root.timeoutHandle;      if (_timeoutHandle !== noTimeout) {        root.timeoutHandle = noTimeout;        // $FlowFixMe Complains noTimeout is not a TimeoutID, despite the check above        cancelTimeout(_timeoutHandle);      }      renderRoot(root, isYieldy);      _finishedWork = root.finishedWork;      if (_finishedWork !== null) {        // We've completed the root. Check the if we should yield one more time        // before committing.        if (!shouldYieldToRenderer()) {          // Still time left. Commit the root.          completeRoot(root, _finishedWork, expirationTime);        } else {          // There's no time left. Mark this root as complete. We'll come          // back and commit it later.          root.finishedWork = _finishedWork;        }      }    }  }
  isRendering = false;}

堆砌#

`renderRoot`#

nextUnitOfWork = createWorkInProgress() 拷贝一份 fiber 节点，在 nextUnitOfWork 中修改，防止改变当前 fiberTree。nextUnitOfWork 是下一个要更新的节点函数主要是用来创建wIP树？
进入workLoop 循环解析工作单元标记effectTag

function renderRoot(root, isYieldy) {
  flushPassiveEffects();
  isWorking = true;  var previousDispatcher = ReactCurrentDispatcher.current;  ReactCurrentDispatcher.current = ContextOnlyDispatcher;
  var expirationTime = root.nextExpirationTimeToWorkOn;
  // Check if we're starting from a fresh stack, or if we're resuming from previously yielded work.  if (expirationTime !== nextRenderExpirationTime || root !== nextRoot || nextUnitOfWork === null) {    // Reset the stack and start working from the root.    resetStack();    nextRoot = root;    nextRenderExpirationTime = expirationTime;    // 创建workInProgress树    nextUnitOfWork = createWorkInProgress(nextRoot.current, null, nextRenderExpirationTime);    root.pendingCommitExpirationTime = NoWork;    }  }  startWorkLoopTimer(nextUnitOfWork);  do {    try {      // 循环更新节点      workLoop(isYieldy);    } catch (thrownValue) {}    break;  } while (true);  // 省略一长串代码
  // Ready to commit.  onComplete(root, rootWorkInProgress, expirationTime);}

function workLoop(isYieldy) {  if (!isYieldy) {    // Flush work without yielding    while (nextUnitOfWork !== null) {      nextUnitOfWork = performUnitOfWork(nextUnitOfWork);    }  } else {    // Flush asynchronous work until there's a higher priority event    while (nextUnitOfWork !== null && !shouldYieldToRenderer()) {      nextUnitOfWork = performUnitOfWork(nextUnitOfWork);    }  }}
function onComplete(root, finishedWork, expirationTime) {  root.pendingCommitExpirationTime = expirationTime;  root.finishedWork = finishedWork;}

// 与hooks有关function flushPassiveEffects() {  if (passiveEffectCallbackHandle !== null) {    cancelPassiveEffects(passiveEffectCallbackHandle);  }  if (passiveEffectCallback !== null) {    // We call the scheduled callback instead of commitPassiveEffects directly    // to ensure tracing works correctly.    passiveEffectCallback();  }}  // 首次渲染 初始化并完善wIP树// 更新渲染 复用并完善// This is used to create an alternate fiber to do work on.function createWorkInProgress(current, pendingProps, expirationTime) {  var workInProgress = current.alternate;  if (workInProgress === null) {    // 双缓存树    workInProgress = createFiber(current.tag, pendingProps, current.key, current.mode);    workInProgress.elementType = current.elementType;    workInProgress.type = current.type;    workInProgress.stateNode = current.stateNode;

    workInProgress.alternate = current;    current.alternate = workInProgress;  } else {    workInProgress.pendingProps = pendingProps;
    // We already have an alternate.    // Reset the effect tag.    workInProgress.effectTag = NoEffect;
    // The effect list is no longer valid.    workInProgress.nextEffect = null;    workInProgress.firstEffect = null;    workInProgress.lastEffect = null;
  }
  workInProgress.childExpirationTime = current.childExpirationTime;  workInProgress.expirationTime = current.expirationTime;
  workInProgress.child = current.child;  workInProgress.memoizedProps = current.memoizedProps;  workInProgress.memoizedState = current.memoizedState;  workInProgress.updateQueue = current.updateQueue;  workInProgress.contextDependencies = current.contextDependencies;
  // These will be overridden during the parent's reconciliation  workInProgress.sibling = current.sibling;  workInProgress.index = current.index;  workInProgress.ref = current.ref;

  return workInProgress;}
// 循环单元更新，对整颗 fiberTree 都遍历一遍  // 在React 17的时候 变成了 workLoopSync() || workLoopConcurrent()// nextUnitOfWork -> workInProgress// shouldYieldToRenderer -> shouldYieldfunction workLoop(isYieldy) {  if (!isYieldy) {    // Flush work without yielding    while (nextUnitOfWork !== null) {      nextUnitOfWork = performUnitOfWork(nextUnitOfWork);    }  } else {    // Flush asynchronous work until there's a higher priority event 遇到高优先级可中断    while (nextUnitOfWork !== null && !shouldYieldToRenderer()) {      nextUnitOfWork = performUnitOfWork(nextUnitOfWork);    }  }}
var didYield = false;function shouldYieldToRenderer() {  if (didYield) {    return true;  }  if (unstable_shouldYield()) {    didYield = true;    return true;  }  return false;}  function performUnitOfWork(workInProgress) {  // The current, flushed, state of this fiber is the alternate.  // Ideally nothing should rely on this, but relying on it here  // means that we don't need an additional field on the work in progress.  var current$$1 = workInProgress.alternate;
  var next = void 0;
  next = beginWork(current$$1, workInProgress, nextRenderExpirationTime);  workInProgress.memoizedProps = workInProgress.pendingProps;

  if (next === null) {    // 如果next值为null，说明当前的Fiber结点已经是叶子结点，接下来要执行完成工作单元解析工作    next = completeUnitOfWork(workInProgress);  }
  ReactCurrentOwner$2.current = null;
  return next;}

`beginWork`#

// renderExpirationTime -> renderLanesfunction beginWork(current$$1, workInProgress, renderExpirationTime) {  var updateExpirationTime = workInProgress.expirationTime;
  // update时：如果current存在可能存在优化路径，可以复用current（即上一次更新的Fiber节点）  if (current$$1 !== null) {    var oldProps = current$$1.memoizedProps;    var newProps = workInProgress.pendingProps;
    if (oldProps !== newProps || hasContextChanged())       // 判断 props 和 context 是否改变      // If props or context changed, mark the fiber as having performed work.      // This may be unset if the props are determined to be equal later (memo).      didReceiveUpdate = true;    } else if (updateExpirationTime < renderExpirationTime) {      // 判断当前 fiber 的优先级是否小于本次渲染的优先级，小于的话可以跳过      didReceiveUpdate = false;      // This fiber does not have any pending work. Bailout without entering      // the begin phase. There's still some bookkeeping we that needs to be done      // in this optimized path, mostly pushing stuff onto the stack.            // 会判断这个 fiber 的子树是否需要更新，如果有需要更新会 clone 一份到 workInProgress.child 返回到 workLoop 的 nextUnitOfWork, 否则为 null      return bailoutOnAlreadyFinishedWork(current$$1, workInProgress, renderExpirationTime);    }  } else {    didReceiveUpdate = false;  }
  // Before entering the begin phase, clear the expiration time.  // 进行更新先把当前 fiber 的 expirationTime 设置为 NoWork  workInProgress.expirationTime = NoWork;    // 根据 fiber 的 tag 类型进行更新  switch (workInProgress.tag) {    case IndeterminateComponent:    case LazyComponent:    case FunctionComponent:    case ClassComponent:    case HostRoot:    case HostComponent:    case HostText:    case SuspenseComponent:    case HostPortal:    case ForwardRef:    case Fragment:    case Mode:    case Profiler:    case ContextProvider:    case ContextConsumer:    case MemoComponent:    case SimpleMemoComponent:    case DehydratedSuspenseComponent:    default:  }}
- 调用 `renderWithHooks` 得到 `ReactElement` -> `nextChildren`- 调用 `reconcileChildren`    - `current`: 当前 `fiber` 节点  - `workInProgress` 需要更新的节点    - `nextChildren` 函数的返回值    - 改变了 `workInProgress.child` 并返回
// 在beginWork中，通过workInProgress.tag判断当前是什么类型的节点而调用不同的更新函数。

commit阶段#

`completeUnitOfWork`#

function completeUnitOfWork(workInProgress) {  // Attempt to complete the current unit of work, then move to the  // next sibling. If there are no more siblings, return to the  // parent fiber.  while (true) {    // The current, flushed, state of this fiber is the alternate.    // Ideally nothing should rely on this, but relying on it here    // means that we don't need an additional field on the work in    // progress.    var current$$1 = workInProgress.alternate;    {      setCurrentFiber(workInProgress);    }
    var returnFiber = workInProgress.return;    var siblingFiber = workInProgress.sibling;
    if ((workInProgress.effectTag & Incomplete) === NoEffect) {      if (true && replayFailedUnitOfWorkWithInvokeGuardedCallback) {        // Don't replay if it fails during completion phase.        mayReplayFailedUnitOfWork = false;      }      // This fiber completed.      // Remember we're completing this unit so we can find a boundary if it fails.      nextUnitOfWork = workInProgress;      if (enableProfilerTimer) {        if (workInProgress.mode & ProfileMode) {          startProfilerTimer(workInProgress);        }        nextUnitOfWork = completeWork(current$$1, workInProgress, nextRenderExpirationTime);        if (workInProgress.mode & ProfileMode) {          // Update render duration assuming we didn't error.          stopProfilerTimerIfRunningAndRecordDelta(workInProgress, false);        }      } else {        nextUnitOfWork = completeWork(current$$1, workInProgress, nextRenderExpirationTime);      }      if (true && replayFailedUnitOfWorkWithInvokeGuardedCallback) {        // We're out of completion phase so replaying is fine now.        mayReplayFailedUnitOfWork = true;      }      stopWorkTimer(workInProgress);      resetChildExpirationTime(workInProgress, nextRenderExpirationTime);      {        resetCurrentFiber();      }
      if (nextUnitOfWork !== null) {        // Completing this fiber spawned new work. Work on that next.        return nextUnitOfWork;      }
      if (returnFiber !== null &&      // Do not append effects to parents if a sibling failed to complete      (returnFiber.effectTag & Incomplete) === NoEffect) {        // Append all the effects of the subtree and this fiber onto the effect        // list of the parent. The completion order of the children affects the        // side-effect order.        if (returnFiber.firstEffect === null) {          returnFiber.firstEffect = workInProgress.firstEffect;        }        if (workInProgress.lastEffect !== null) {          if (returnFiber.lastEffect !== null) {            returnFiber.lastEffect.nextEffect = workInProgress.firstEffect;          }          returnFiber.lastEffect = workInProgress.lastEffect;        }
        // If this fiber had side-effects, we append it AFTER the children's        // side-effects. We can perform certain side-effects earlier if        // needed, by doing multiple passes over the effect list. We don't want        // to schedule our own side-effect on our own list because if end up        // reusing children we'll schedule this effect onto itself since we're        // at the end.        var effectTag = workInProgress.effectTag;        // Skip both NoWork and PerformedWork tags when creating the effect list.        // PerformedWork effect is read by React DevTools but shouldn't be committed.        if (effectTag > PerformedWork) {          if (returnFiber.lastEffect !== null) {            returnFiber.lastEffect.nextEffect = workInProgress;          } else {            returnFiber.firstEffect = workInProgress;          }          returnFiber.lastEffect = workInProgress;        }      }
      if (true && ReactFiberInstrumentation_1.debugTool) {        ReactFiberInstrumentation_1.debugTool.onCompleteWork(workInProgress);      }
      if (siblingFiber !== null) {        // If there is more work to do in this returnFiber, do that next.        return siblingFiber;      } else if (returnFiber !== null) {        // If there's no more work in this returnFiber. Complete the returnFiber.        workInProgress = returnFiber;        continue;      } else {        // We've reached the root.        return null;      }    } else {      if (enableProfilerTimer && workInProgress.mode & ProfileMode) {        // Record the render duration for the fiber that errored.        stopProfilerTimerIfRunningAndRecordDelta(workInProgress, false);
        // Include the time spent working on failed children before continuing.        var actualDuration = workInProgress.actualDuration;        var child = workInProgress.child;        while (child !== null) {          actualDuration += child.actualDuration;          child = child.sibling;        }        workInProgress.actualDuration = actualDuration;      }
      // This fiber did not complete because something threw. Pop values off      // the stack without entering the complete phase. If this is a boundary,      // capture values if possible.      var next = unwindWork(workInProgress, nextRenderExpirationTime);      // Because this fiber did not complete, don't reset its expiration time.      if (workInProgress.effectTag & DidCapture) {        // Restarting an error boundary        stopFailedWorkTimer(workInProgress);      } else {        stopWorkTimer(workInProgress);      }
      {        resetCurrentFiber();      }
      if (next !== null) {        stopWorkTimer(workInProgress);        if (true && ReactFiberInstrumentation_1.debugTool) {          ReactFiberInstrumentation_1.debugTool.onCompleteWork(workInProgress);        }
        // If completing this work spawned new work, do that next. We'll come        // back here again.        // Since we're restarting, remove anything that is not a host effect        // from the effect tag.        next.effectTag &= HostEffectMask;        return next;      }
      if (returnFiber !== null) {        // Mark the parent fiber as incomplete and clear its effect list.        returnFiber.firstEffect = returnFiber.lastEffect = null;        returnFiber.effectTag |= Incomplete;      }
      if (true && ReactFiberInstrumentation_1.debugTool) {        ReactFiberInstrumentation_1.debugTool.onCompleteWork(workInProgress);      }
      if (siblingFiber !== null) {        // If there is more work to do in this returnFiber, do that next.        return siblingFiber;      } else if (returnFiber !== null) {        // If there's no more work in this returnFiber. Complete the returnFiber.        workInProgress = returnFiber;        continue;      } else {        return null;      }    }  }
  // Without this explicit null return Flow complains of invalid return type  // TODO Remove the above while(true) loop  // eslint-disable-next-line no-unreachable  return null;}

`completeWork`#

function completeWork(current, workInProgress, renderExpirationTime) {  var newProps = workInProgress.pendingProps;
  switch (workInProgress.tag) {    case IndeterminateComponent:    case LazyComponent:    case SimpleMemoComponent:    case FunctionComponent:    case ClassComponent:      {        var Component = workInProgress.type;        if (isContextProvider(Component)) {          popContext(workInProgress);        }        break;      }    case HostRoot:      {        popHostContainer(workInProgress);        popTopLevelContextObject(workInProgress);        var fiberRoot = workInProgress.stateNode;        if (fiberRoot.pendingContext) {          fiberRoot.context = fiberRoot.pendingContext;          fiberRoot.pendingContext = null;        }        if (current === null || current.child === null) {          // If we hydrated, pop so that we can delete any remaining children          // that weren't hydrated.          popHydrationState(workInProgress);          // This resets the hacky state to fix isMounted before committing.          // TODO: Delete this when we delete isMounted and findDOMNode.          workInProgress.effectTag &= ~Placement;        }        updateHostContainer(workInProgress);        break;      }    case HostComponent:
    case HostText:    case ForwardRef:    case SuspenseComponent:    case Fragment:    case Mode:    case Profiler:    case HostPortal:    case ContextProvider:    case ContextConsumer:    case MemoComponent:    case IncompleteClassComponent:    case DehydratedSuspenseComponent:    default:
  return null;}

`HostComponent`#

页面渲染所必须的HostComponent（即原生DOM组件对应的Fiber节点

case HostComponent: {  popHostContext(workInProgress);  var rootContainerInstance = getRootHostContainer();  var type = workInProgress.type;    // update  if (current !== null && workInProgress.stateNode != null) {    updateHostComponent$1(current, workInProgress, type, newProps, rootContainerInstance);
    if (current.ref !== workInProgress.ref) {      markRef$1(workInProgress);    }  } else {    if (!newProps) {      !(workInProgress.stateNode !== null) ? invariant(false, 'We must have new props for new mounts. This error is likely caused by a bug in React. Please file an issue.') : void 0;      // This can happen when we abort work.      break;    }
    var currentHostContext = getHostContext();    // TODO: Move createInstance to beginWork and keep it on a context    // "stack" as the parent. Then append children as we go in beginWork    // or completeWork depending on we want to add then top->down or    // bottom->up. Top->down is faster in IE11.    var wasHydrated = popHydrationState(workInProgress);    if (wasHydrated) {      // TODO: Move this and createInstance step into the beginPhase      // to consolidate.      if (prepareToHydrateHostInstance(workInProgress, rootContainerInstance, currentHostContext)) {        // If changes to the hydrated node needs to be applied at the        // commit-phase we mark this as such.        markUpdate(workInProgress);      }    } else {      // mount      var instance = createInstance(type, newProps, rootContainerInstance, currentHostContext, workInProgress);
      appendAllChildren(instance, workInProgress, false, false);
      // Certain renderers require commit-time effects for initial mount.      // (eg DOM renderer supports auto-focus for certain elements).      // Make sure such renderers get scheduled for later work.      if (finalizeInitialChildren(instance, type, newProps, rootContainerInstance, currentHostContext)) {        markUpdate(workInProgress);      }      workInProgress.stateNode = instance;    }
    if (workInProgress.ref !== null) {      // If there is a ref on a host node we need to schedule a callback      markRef$1(workInProgress);    }  }  break;}

`commitPassiveEffects`#

function commitPassiveEffects(root, firstEffect) {  rootWithPendingPassiveEffects = null;  passiveEffectCallbackHandle = null;  passiveEffectCallback = null;
  // Set this to true to prevent re-entrancy  var previousIsRendering = isRendering;  isRendering = true;
  var effect = firstEffect;  do {    {      setCurrentFiber(effect);    }
    if (effect.effectTag & Passive) {      var didError = false;      var error = void 0;      {        invokeGuardedCallback(null, commitPassiveHookEffects, null, effect);        if (hasCaughtError()) {          didError = true;          error = clearCaughtError();        }      }      if (didError) {        captureCommitPhaseError(effect, error);      }    }    effect = effect.nextEffect;  } while (effect !== null);  {    resetCurrentFiber();  }
  isRendering = previousIsRendering;
  // Check if work was scheduled by one of the effects  var rootExpirationTime = root.expirationTime;  if (rootExpirationTime !== NoWork) {    requestWork(root, rootExpirationTime);  }  // Flush any sync work that was scheduled by effects  if (!isBatchingUpdates && !isRendering) {    performSyncWork();  }}

React 15 源码#

源码有删减作简化处理且未核验 orz

setState -> enqueueSetState -> enqueueUpdate -> isBatchingUpdates
组件入队dirtyComponents 循环更新dirtyComponents里的所有组件

setState 方法挂载在原型链上

ReactComponent.prototype.setState = function (partialState, callback) {  // 调用 setState 后，会调用内部的 updater.enqueueSetState  this.updater.enqueueSetState(this, partialState);  if (callback) {    this.updater.enqueueCallback(this, callback, 'setState');  }};

enqueueSetState

enqueueSetState(component, partialState) {  // 在组件的 _pendingStateQueue 上暂存新的 state  if (!component._pendingStateQueue) {    component._pendingStateQueue = [];  }  var queue = component._pendingStateQueue;  queue.push(partialState);  enqueueUpdate(component);}

将新的 state 放进组件的状态队列里
用 enqueueUpdate 来处理将要更新的实例对象

enqueueUpdate

function enqueueUpdate(component) {  // 注意这一句是问题的关键，isBatchingUpdates标识着当前是否处于批量创建/更新组件的阶段  if (!batchingStrategy.isBatchingUpdates) {    // 若当前没有处于批量创建/更新组件的阶段，则立即更新组件    batchingStrategy.batchedUpdates(enqueueUpdate, component);    return;  }  // 否则，先把组件塞入 dirtyComponents 队列里，让它“再等等”  dirtyComponents.push(component);}

batchingStrategy

var batchingStrategy = {  // 全局唯一的锁标识 判断是否在更新流程中  isBatchingUpdates: false,   // 发起更新动作的方法  batchedUpdates: function(callback, a, b, c, d, e) {    // 缓存锁变量    var alreadyBatchingStrategy = ReactDefaultBatchingStrategy.isBatchingUpdates    // 把锁“锁上”    ReactDefaultBatchingStrategy.isBatchingUpdates = true
    if (alreadyBatchingStrategy) {      // 如果已经在更新状态中，重新调用 enqueueUpdate，将 component 放入 dirtyComponents      // callback -> enqueueUpdate      callback(a, b, c, d, e)    } else {      // 启动事务，将 callback 放进事务里执行      transaction.perform(callback, null, a, b, c, d, e)    }  }}

Transaction

var RESET_BATCHED_UPDATES = {  initialize: emptyFunction,  close: function () {    ReactDefaultBatchingStrategy.isBatchingUpdates = false;  }};var FLUSH_BATCHED_UPDATES = {  initialize: emptyFunction,  close: ReactUpdates.flushBatchedUpdates.bind(ReactUpdates)};var TRANSACTION_WRAPPERS = [FLUSH_BATCHED_UPDATES, RESET_BATCHED_UPDATES];

Transaction 是创建一个黑盒，该黑盒能够封装任何的方法

/**                       wrappers (injected at creation time)*                                      +        +*                                      |        |*                    +-----------------|--------|--------------+*                    |                 v        |              |*                    |      +---------------+   |              |*                    |   +--|    wrapper1   |---|----+         |*                    |   |  +---------------+   v    |         |*                    |   |          +-------------+  |         |*                    |   |     +----|   wrapper2  |--------+   |*                    |   |     |    +-------------+  |     |   |*                    |   |     |                     |     |   |*                    |   v     v                     v     v   | wrapper*                    | +---+ +---+   +---------+   +---+ +---+ | invariants* perform(anyMethod) | |   | |   |   |         |   |   | |   | | maintained* +----------------->|-|---|-|---|-->|anyMethod|---|---|-|---|-|-------->*                    | |   | |   |   |         |   |   | |   | |*                    | |   | |   |   |         |   |   | |   | |*                    | |   | |   |   |         |   |   | |   | |*                    | +---+ +---+   +---------+   +---+ +---+ |*                    |  initialize                    close    |*                    +-----------------------------------------+*/

说白了，Transaction 就像是一个“壳子”，它首先会将目标函数用 wrapper（一组 initialize 及 close 方法称为一个 wrapper）封装起来，同时需要使用 Transaction 类暴露的 perform 方法去执行它。

如上面的注释所示，在 anyMethod 执行之前，perform 会先执行所有 wrapper 的 initialize 方法，执行完后，再执行所有 wrapper 的 close 方法。这就是 React 中的事务机制。

在 callback 执行之后，RESET_BATCHED_UPDATES 将 isBatchingUpdates 置为false，FLUSH_BATCHED_UPDATES 执行 flushBatchedUpdates ，然后里面会循环所有 dirtyComponent，调用updateComponent来执行所有的生命周期方法 (componentWillReceiveProps → shouldComponentUpdate → componentWillUpdate → render → componentDidUpdate)，最后实现组件的更新。

ReactMount.js

_renderNewRootComponent: function( nextElement, container, shouldReuseMarkup, context ) {  // 实例化组件  var componentInstance = instantiateReactComponent(nextElement);  // 初始渲染直接调用 batchedUpdates 进行同步渲染  ReactUpdates.batchedUpdates(    batchedMountComponentIntoNode,    componentInstance,    container,    shouldReuseMarkup,    context  );  ...}

这段代码是在首次渲染组件时会执行的一个方法，我们看到它内部调用了一次 batchedUpdates，这是因为在组件的渲染过程中，会按照顺序调用各个生命周期函数。开发者很有可能在声明周期函数中调用 setState。因此，我们需要通过开启 batch 来确保所有的更新都能够进入 dirtyComponents 里去，进而确保初始渲染流程中所有的 setState 都是生效的。

下面代码是 React 事件系统的一部分。当我们在组件上绑定了事件之后，事件中也有可能会触发 setState。为了确保每一次 setState 都有效，React 同样会在此处手动开启批量更新。

ReactEventListener.js

dispatchEvent: function (topLevelType, nativeEvent) {  ...  try {    // 处理事件    ReactUpdates.batchedUpdates(handleTopLevelImpl, bookKeeping);  } finally {    TopLevelCallbackBookKeeping.release(bookKeeping);  }}

所以，isBatchingUpdates 这个变量，在 React 的生命周期函数以及合成事件执行前，已经被 React 悄悄修改为了 true，这个时候已经开始了事务，所以只要不脱离 React，不管多少次 setState 都会把其组件放入脏组件队列等待更新。当函数执行完毕后，事务的 close 方法会再把 isBatchingUpdates 改为 false。

React 16 源码#

因为 React 16 中已经没有了事务一说。

Ref

聊聊生命周期#

setState 同步异步?#

Ref

React 理念#

CPU的瓶颈#

IO的瓶颈#

React15架构#

Reconciler#

Renderer#

缺点#

React16架构#

Scheduler#

Reconciler#

Renderer#

render和commit阶段#

Fiber架构#

弃用generate原因#

Fiber的含义#

架构#

静态的数据结构#

动态的工作单元#

JSX Fiber#

render阶段#

递 beginWork#

归 completeWork#

performUnitOfWork#

beginWork#

commit阶段#

浏览器的一帧#

调度#

scheduleWork#

scheduleWorkToRoot#

requestWork#

addRootToSchedule#

performSyncWork#

performWork#

scheduleCallbackWithExpirationTime#

unstable_scheduleCallback#

ensureHostCallbackIsScheduled#

requestHostCallback#

requestAnimationFrameWithTimeout#

animationTick#

MessageChannel#

flushWork#

flushFirstCallback#

performAsyncWork#

performWork#

performWorkOnRoot#

堆砌#

renderRoot#

beginWork#

commit阶段#

completeUnitOfWork#

completeWork#

HostComponent#

commitPassiveEffects#

React 15 源码#

React 16 源码#

`setState` 同步异步?#

`Reconciler`#

`Renderer`#

`Scheduler`#

`Reconciler`#

`Renderer`#

`render`和`commit`阶段#

弃用`generate`原因#

`Fiber`的含义#

`JSX Fiber`#

`render`阶段#

递 `beginWork`#

归 `completeWork`#

`performUnitOfWork`#

`beginWork`#

`commit`阶段#

`scheduleWork`#

`scheduleWorkToRoot`#

`requestWork`#

`addRootToSchedule`#

`performSyncWork`#

`performWork`#

`scheduleCallbackWithExpirationTime`#

`unstable_scheduleCallback`#

`ensureHostCallbackIsScheduled`#

`requestHostCallback`#

`requestAnimationFrameWithTimeout`#

`animationTick`#

`MessageChannel`#

`flushWork`#

`flushFirstCallback`#

`performAsyncWork`#

`performWork`#

`performWorkOnRoot`#

`renderRoot`#

`beginWork`#

`completeUnitOfWork`#

`completeWork`#

`HostComponent`#

`commitPassiveEffects`#
